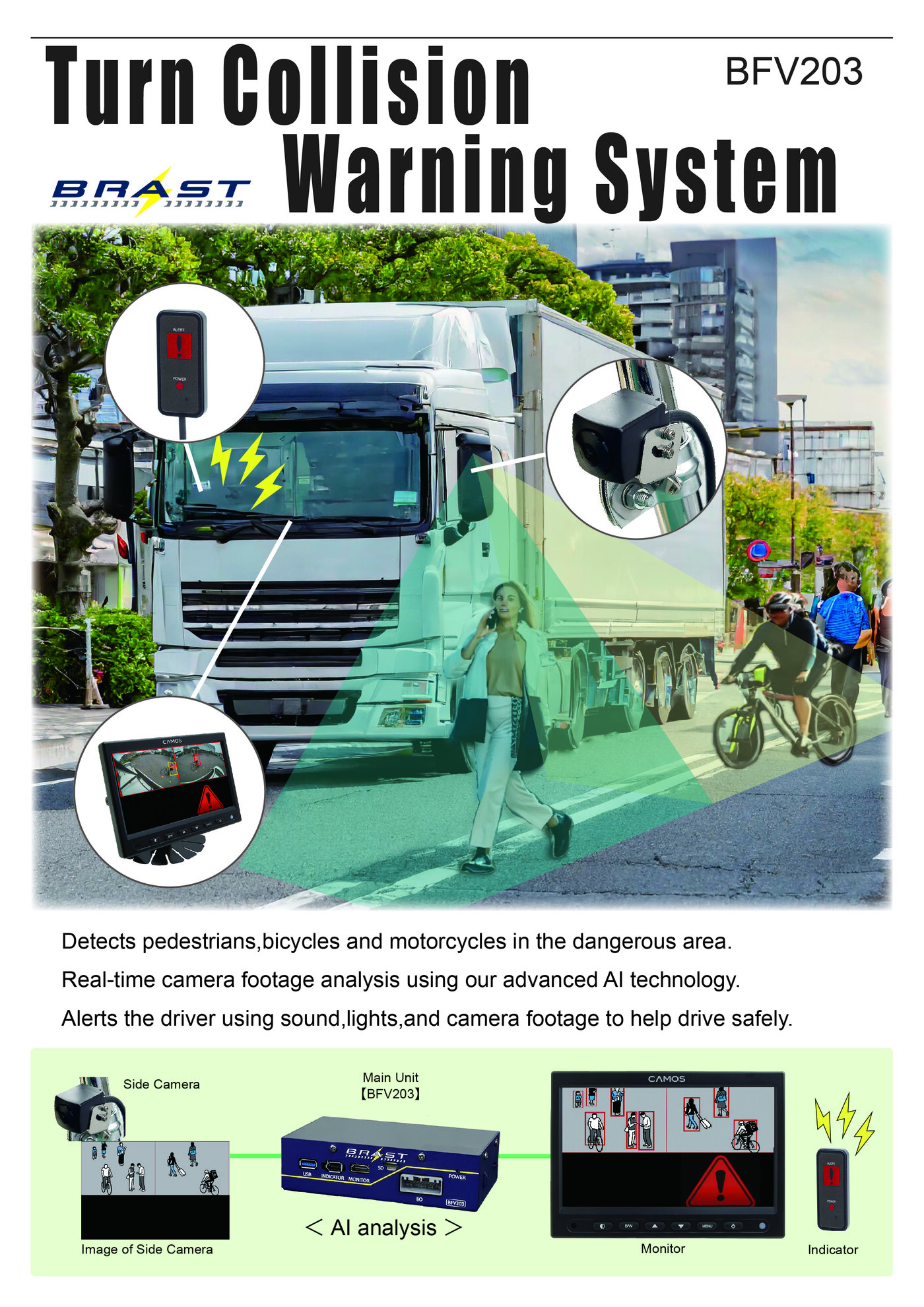

Turn Collision Warning System BVF203BFV203
Turn Collision Warning System BVF203
Detect people present in the truck's blind spot!
Real-time camera footage analysis using our advanced AI technology. Support safe driving by providing audio, visual, and video alerts to the driver.
Feature
| AI-power image recognition enables high-precision detection of vulnerable road users. | |
| Compact camera monitors dangerous zones around the vehicle. | |
| Alert the driver with sound, light, and real-time video. | |
| Customizable detection area. |
Specification
| Model | BFV203 | |
|---|---|---|
| Function | Detection target | [Pedestrians] [Cyclists] [Bicyclists] |

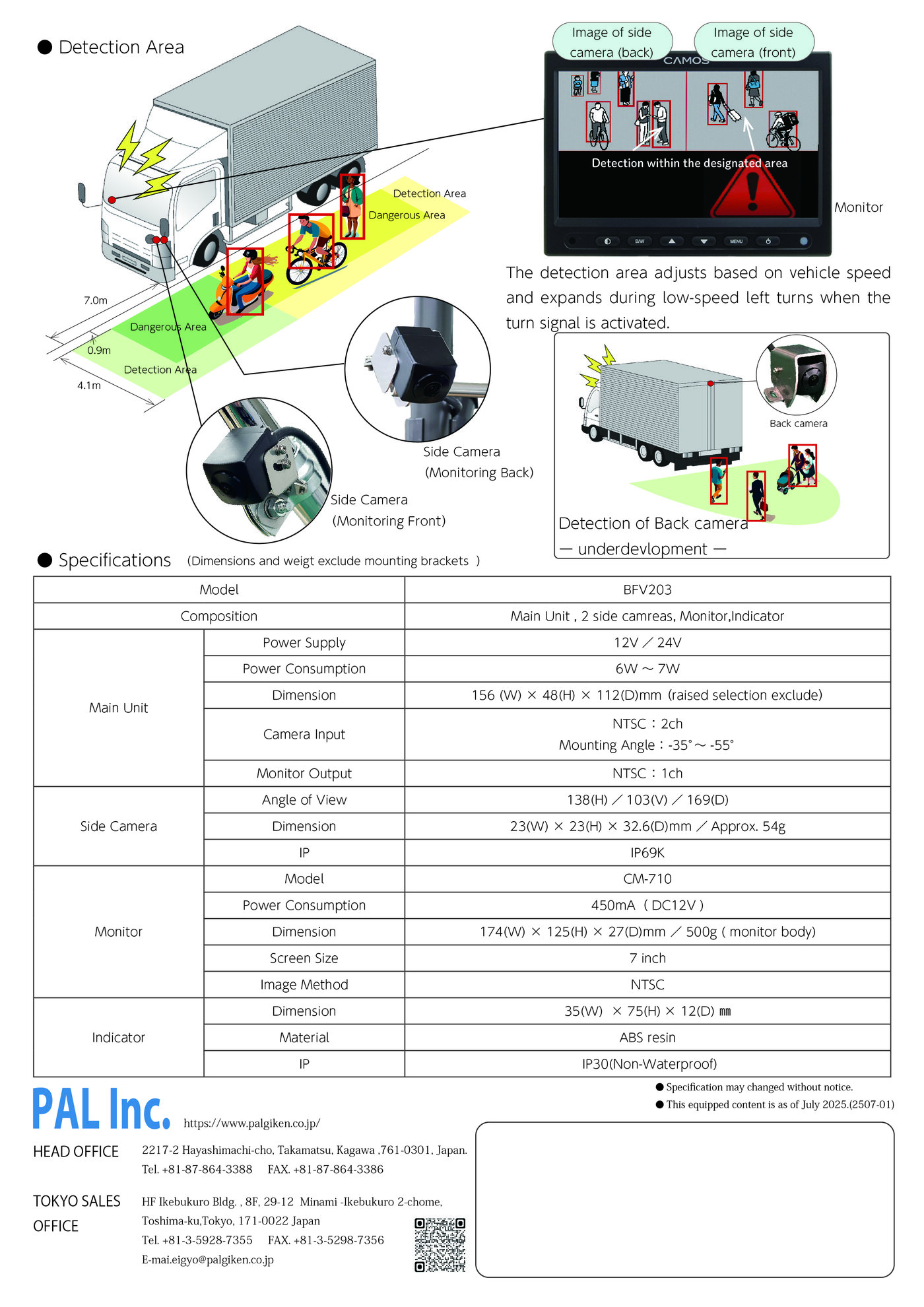

| Detection range | Front 7m ～ Rear 12m ※ Detection area changes based on the camera's mounting |
|
| Detection enviromnet | Illuminance: Approx.15 lux or more | |

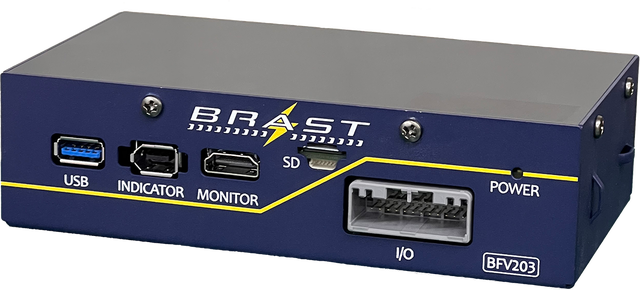

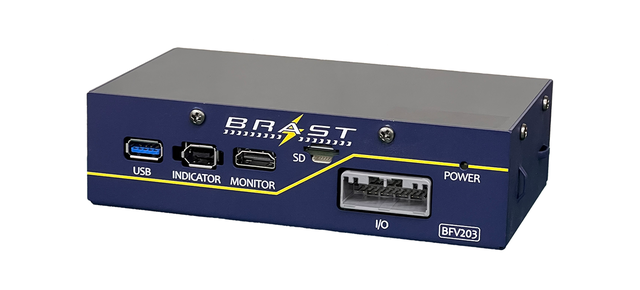

| Identification unit | Power supply | Approx. 7.5W (typ.) |
| Input signal | Plus input 5 circuits Minus input 1 circuit (Vehicle speed pulse input) |
|
| Output signal | FET plus output ２ circuits Maximum load current:0.2A (Overcurrent protection activates at 0.22A or higher) Maximum allowable voltage: +60V |
|
| Dimension / mass | 157.8(W)x 89.4(H) x 43.5(D)mm (raised section exclude)/789g (typ) | |
| Operation temperature Storage temperature |
-20℃～+65℃ -40℃～+90℃ |
|
| Camera | Type / Number of pixels | NTSC / CMOS Approx.350,000 pixels |
| Dimension / mass | 23(W) x 23(H) x 32.6 (D)mm /53.5g (exclude mount) | |
| Operating temperature Storage temperature |
-20℃～+70℃ -30℃～+80℃ |
|
| Indicator | Alert display | Alert: 15 x 20mm (red frame) |
| Status display | Operating :⌀ 3mm ( red) | |
| Dimension / mass | 35(W) x 75(H) x 12(D)mm /20g (typ.) | |
| Operating temperature Storage temperature |
-20℃～+60℃ -40℃～+90℃ |
|
| Monitor | Type / screen size | NTSC / 7inches 154(W) x 86(H) mm |
| Dimension / mass | 174(W) x 125(H) x 27(D)mm / 0.5kg | |
| Operating Temperature | -20℃～+55℃ | |

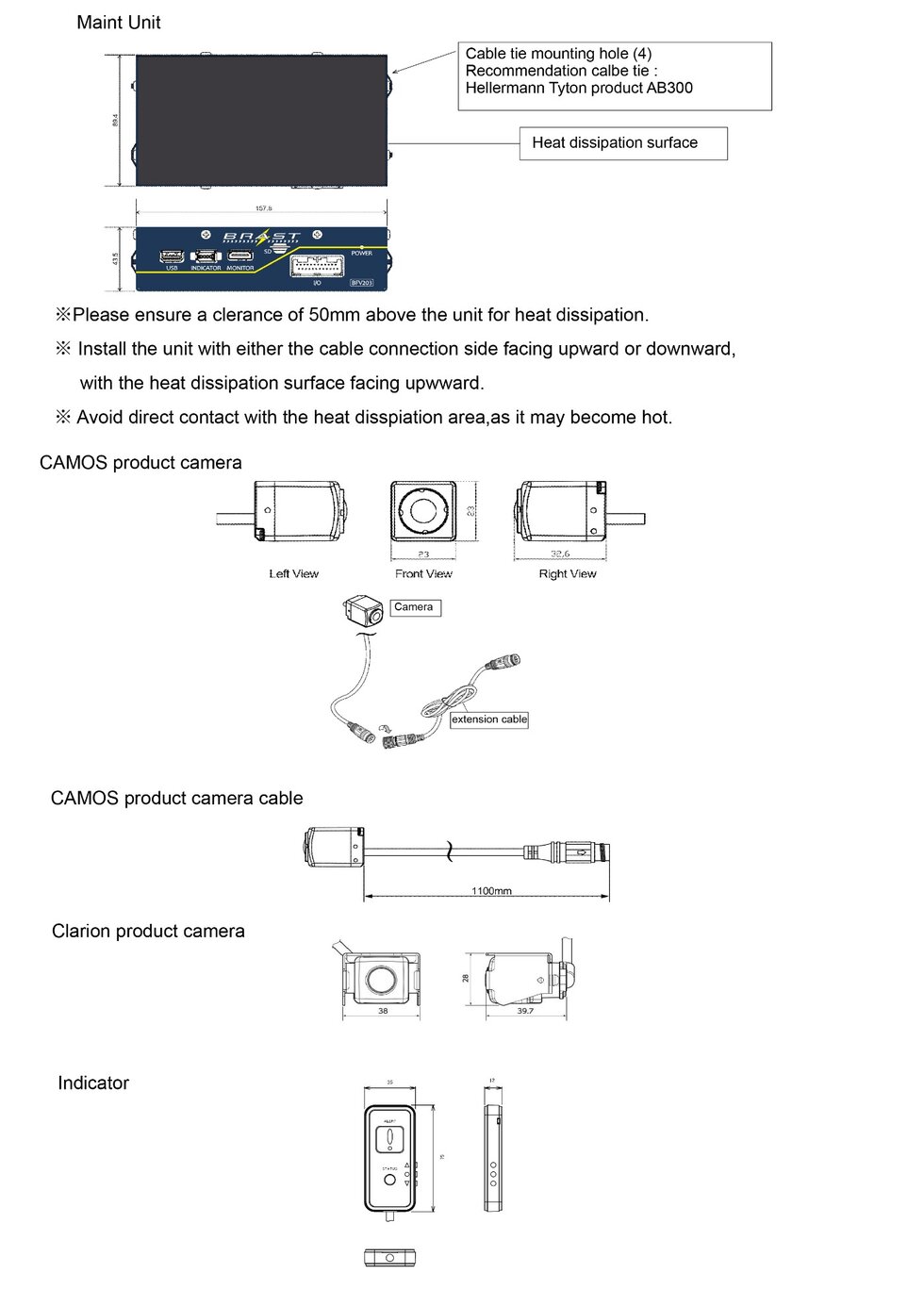

Outline drawing (Unit: mm)
※Specifications are subject to change without notice.
※Please note that the products listed in this catalog are not covered for any damage or malfunction caused by theft, personal injury. natural disasters (such as lighting surges), environmental conditions, misuse, or lack of proper maintenance and inspection.
