Forklift Safety Assistance System BFV202
All-Direction Detection with 4 Cameras
This safety assistance system uses four cameras, two mounted on the front and two on the rear of the forklift. The display on the monitor automatically switched based on the direction of movement. Using AI based image analysis, the system alerts the driver through visual and audio warnings, supporting safer operation.
Feature
| Real-time detection powered by high-speed processing | |
| The system detects ”workers" as the target. | |
| Can be retrofitted to forklifts in operation. | |
| Audio warnings for drivers and workers. |
Specification
| Model | BFV202 | |
|---|---|---|
| function | Detection target | Pedestrians (Approx.12m) |
| Detection range | Detection range adjustable as needed Forklift front, rear 0.5m～12m |
|
| Detection aera | 2 Areas (dangerous area / caution area) | |
| Identification unit | Power supply/Consumption power | DC9V ～ 16V（standard) , DC9V～72V(option) / 6W～7W |
| Camera input | NTSC:4ch. (switch front 2ch. and rear 2ch. based on the direction of movement) mounted angle: -35° ～ -55° |
|
| Monitor output | NTSC 1ch | |
| Dimension | 156(W) x 48(H) x 112(D)mm (raised section exclude) | |
| Operation temperature Storage temperature |
-30℃～+60℃ -30℃～+80℃ |
|
| Camera | Type | NTSC / CMOS |
| Dimension / mass | 23(W) x 23(H) x 32.6 (D)mm / approx.54g | |
| Operating temperature | -20℃～+70℃ | |
| Monitor | Alert display | Detected subjects are emphasized by a red border and orange highlight |
| Dimension / mass | 181(W) x 134(H) x 28(D)m / 860g | |
| Operating ambient temperature | -10℃～+60℃ | |
| Speaker | Dimension / mass | Diameter ⌀152mm x Length 178mm / 1.2kg |
| Operating Temperature | -20℃～+55℃ | |

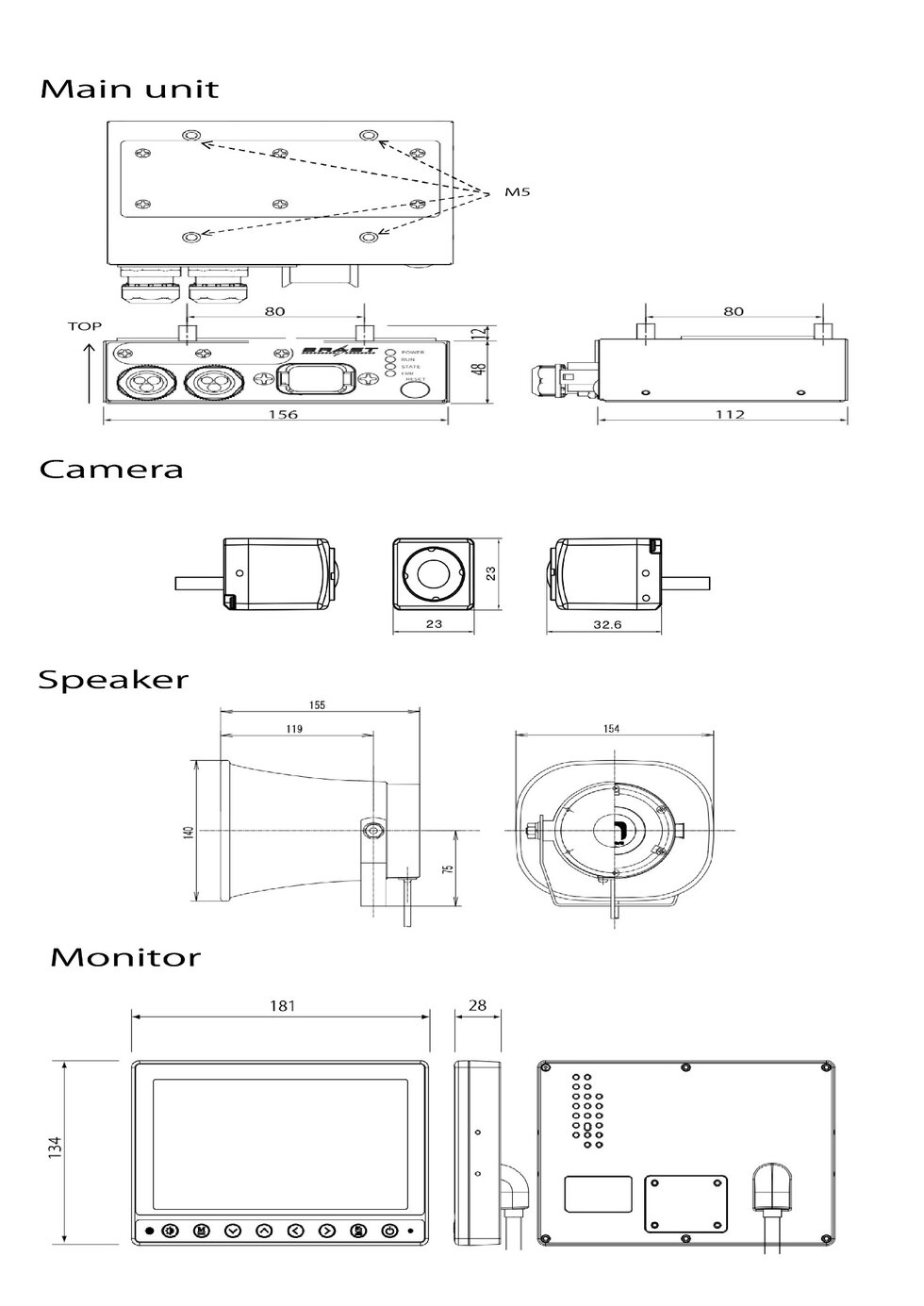

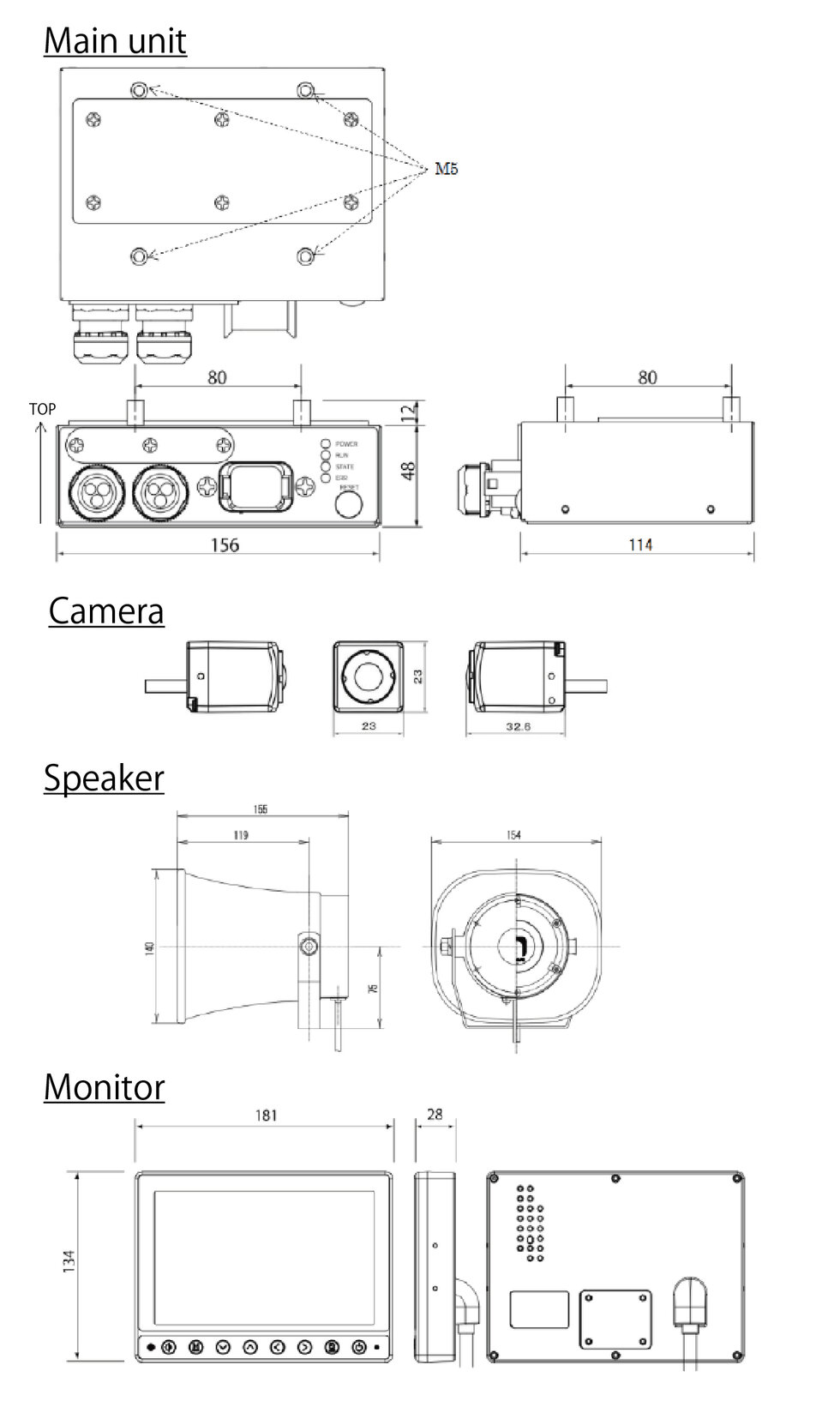

Outline drawing (Unit: mm)
※Specifications are subject to change without notice.
※Please note that the products listed in this catalog are not covered for any damage or malfunction caused by theft, personal injury. natural disasters (such as lighting surges), environmental conditions, misuse, or lack of proper maintenance and inspection.

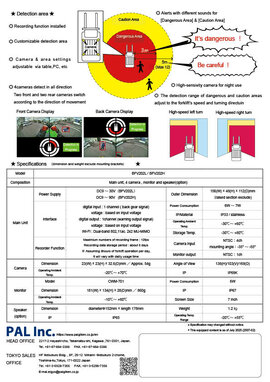

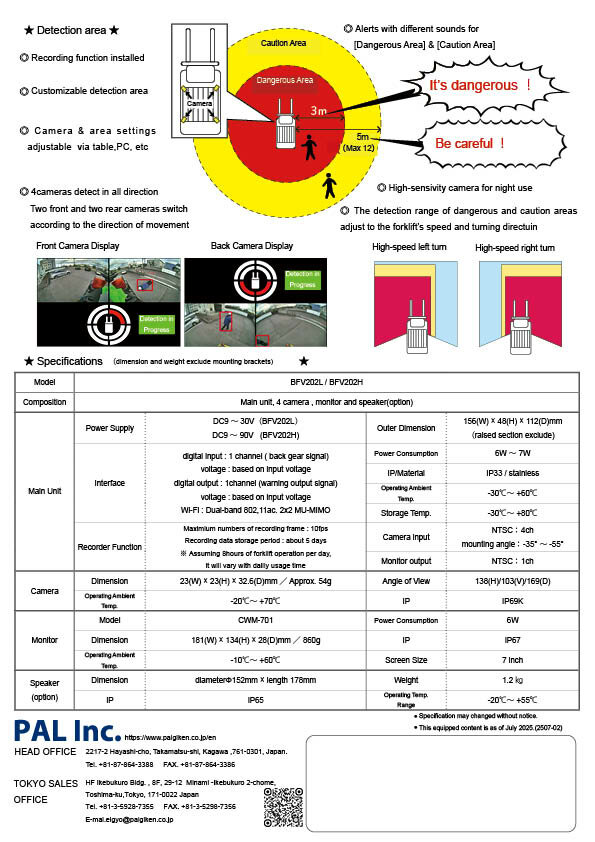

Catalog
