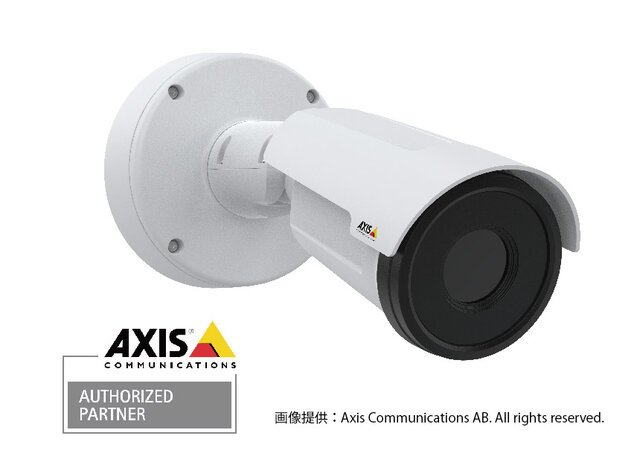

AXIS Q1971-E Thermal CameraAXIS Q1971-E
AXIS Q1971-E Thermal Camera
Detect and verify regardless of weather and light
Ideal for perimeter protection, this robust,
halogen-free camera can detect and verify regardless of weather and light
conditions even in low-contrast scenes.
With five lens alternatives,
it ensures optimal detection to suit specific needs.
Feature
| Reliable thermal detection 24/7 | |
| Five lens alternatives | |
| Support for AXIS Perimeter Defender | |
| Compact, robust, halogen-free |
Specification
| Model | AXIS Q1971-E 7 mm / AXIS Q1971-E 13 mm / AXIS Q1971-E 19 mm AXIS Q1971-E 25 mm / AXIS Q1971-E 35 mm |
|
|---|---|---|
| Camera | Image sensor | Detector: Uncooled Microbolometer Resolution: 384 × 288 pixels Pixel Size: 17 μm Spectral Range: 8–14 μm |
| Thermal sensitivity (NETD) | 20 mK @25C, F1.0 | |
| Thermal sensor resolution | 384x288 | |
| System Integration | Audio detection | ✓ |
| Active tampering | ✓ | |
| Alarm inputs/outputs | 1/1 | |
| Serial connectors | － | |
| Video motion detection | ✓ | |
| Video | Max video resolution | 768ｘ576 |
| Max frames per second * | 8.3 / 30 | |
| Electronic image stabilization | ✓ | |
| Multiple color palettes | ✓ | |
| Network | PoE Class | 3 |
| Security | Signed firmware | ✓ |
|
Lens |
7 mm, F1.18 | Horizontal FOV: 55° Vertical FOV: 41° Minimum Focus Distance: 1.2 m |
13 mm, F1.0 |
Horizontal FOV: 29° Vertical FOV: 22° Minimum Focus Distance: 4.7 m (15.4 ft) |
|
| 19 mm, F1.24 | Horizontal FOV: 19° Vertical FOV: 15° Minimum Focus Distance: 8.3 m (27.2 ft) |
|
| 25 mm, F1.0 | Horizontal FOV: 15° Vertical FOV: 11° Minimum Focus Distance: 18.2 m (60 ft) |
|
| 35 mm, F1.14 | Horizontal FOV: 10.5° Vertical FOV: 8° Minimum Focus Distance: 31.3 m (103 ft) |
|
| General | Local storage (memory card slot) | ✓ |
| Operating temperature | -40 to 60 ℃ | |
| Outdoor Ready | ✓ | |
| IP rating | IP66, IP67 | |
| Compression | Zipstream | ✔ |
| H.264 | Baseline, High, Main | |
| Motion JPEG | ✔ | |
| Audio | Audio support | ✔ |
* Some technical specifications may vary depending on which hardware option you choose.
※Specifications are subject to change without notice.
