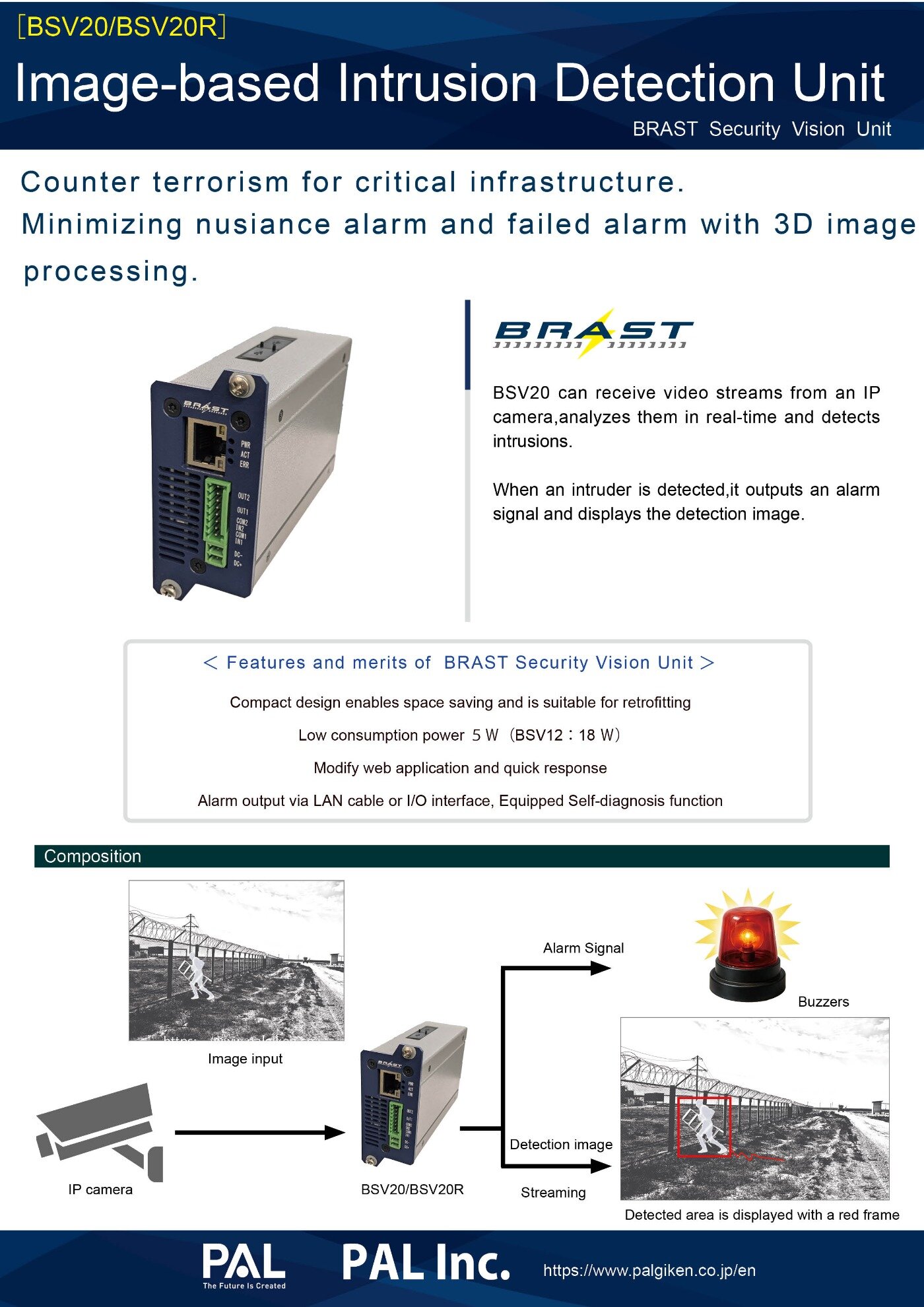

Image-based Intrusion Detection UnitBSV20 / BSV20R
Image-based Intrusion Detection Unit
Counter terrorism for critical infrastructure.
Minimizing nusiacne alarm and failed alarm with 3D image processing.
Image-based intrustion Unit BSV20/BSV20R can receive video streams from an IP camera, analyzes them in real-time and detects intrusions.
When an intuder is detected, it outputs an alarm signal and displays the detecction image.
Feature
| Compact design | Space-saving construction, allowing flexible installation even as an add-on. |
|---|---|
| Low consumption power | Operates at just 5W (72% reduction compared to BSV12). |
| Enhanced Web Application | Improved usability with smoother and faster response. |
| Alarm Output & Self-Diagnostics | Supports I/O connections and provides immediate alerts in case of abnormalities. |

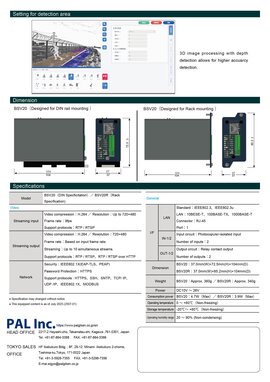

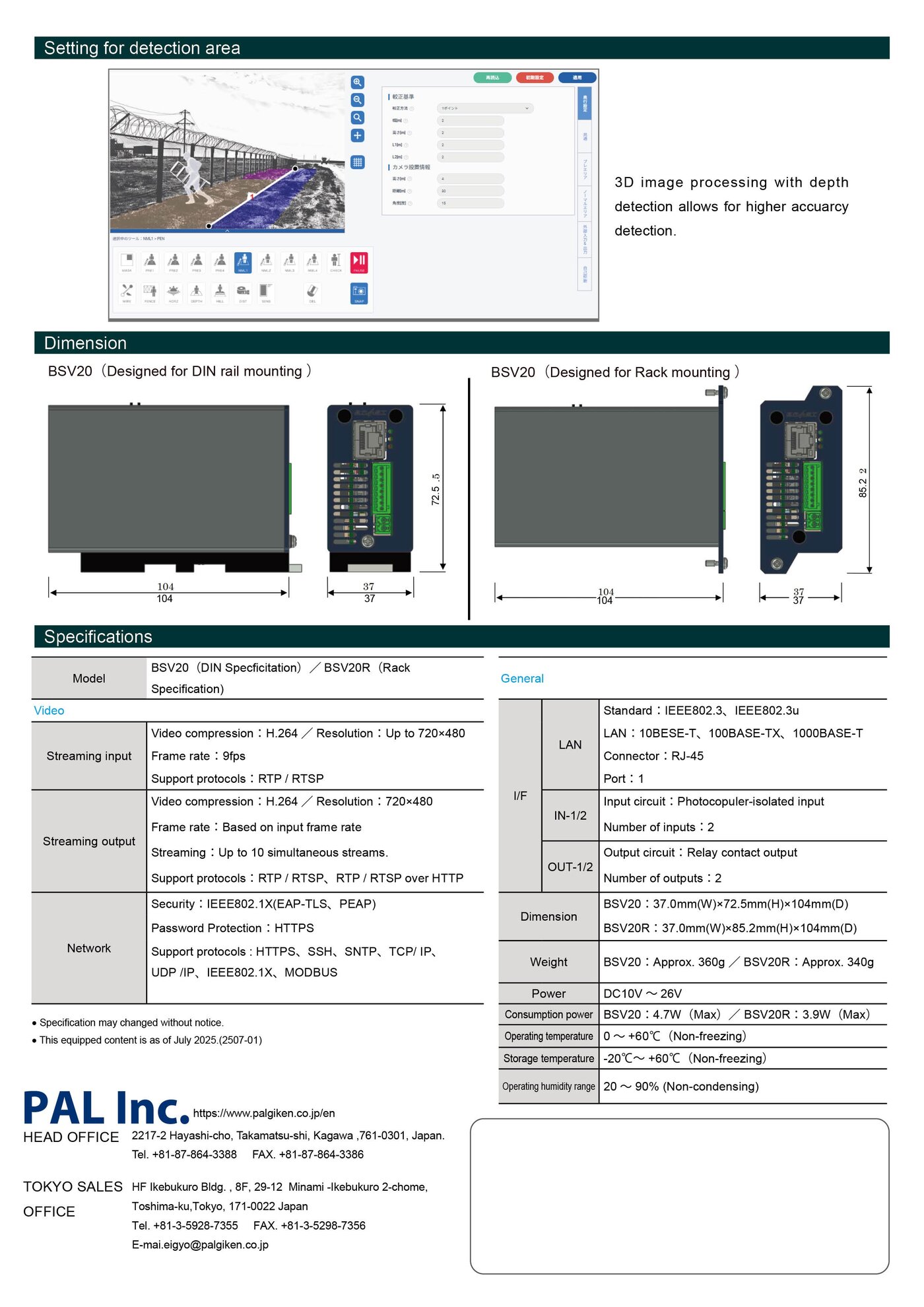

Specification
-

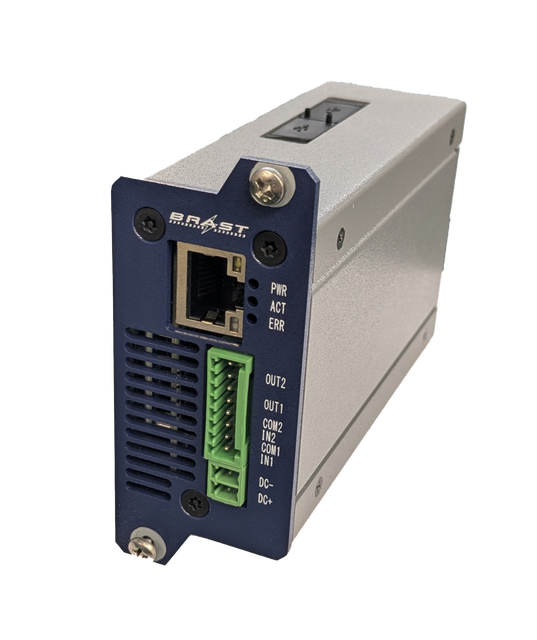

Model BSV20 (DIN rail type)
BSV20R (rack-mount type)Weight BSV20：Approx 360g
BSV20R：Approx 340gStreaming input Video compression：H.264 Resolution：Up to 720 × 480
Frame rate ：9fps
Support protocols：
RTP / RTSP
Dimension BSV20：37.0mm(W))×72.5mm(H)×104mm(D) (the body , includes DIN rail mounting brackets)
BSV20R：37.0mm(W) × 85.2mm(H) × 104mm(D) (the body , includes rack mounting attachment)Streaming output Video compression：H.264 Resolution：720 × 480
Frame rate：Based on input frame rate
Streaming：Up to 10 simultaneous streams.
Support protocols：RTP / RTSP、RTP / RTSP over HTTPPower Supply DC10V ～ 26V
Network Security：IEEE802.1X(EAP-TLS、PEAP)
Password Protection ：HTTPS
Support protocols : HTTPS、SSH、SNTP、TCP/ IP、UDP /
IP、IEEE802.1X、MODBUS
Consumption power BSV20：4.7W（Max）
BSV20R：3.9W（Max）Camera Input NTSC×1、IP×1 Operating temperature 0 ～ +60℃（Non-freezing） Video Output NTSC×1、IP×1 Interfaces (I/F) 【LAN】
Standard：IEEE802.3、IEEE802.3u
Network: 10BASE-T,
100BASE-TX, 1000BASE-T
Connector：RJ-45
Port：1
【IN-1/2】
Input circuit：Photocopuler-isolated input
Number of inputs：2
【OUT-1/2】
Output circuit：Relay contact output
Number of outputs：2
Storage Temperature Range -20℃～ +60℃（Non-freezing） Optional Accessories Storage rack:
BV-RKA (AC power type)
BV-RKD (DC power type)Operating Humidity Range 20 ～ 90% (Non-condensing) -
Outline drawing (Unit: mm)
Option
Catalog
※Specifications are subject to change without notice.
※Please note that the products listed in this catalog are not covered for any damage or malfunction caused by theft, personal injury. natural disasters (such as lighting surges), environmental conditions, misuse, or lack of proper maintenance and inspection.
